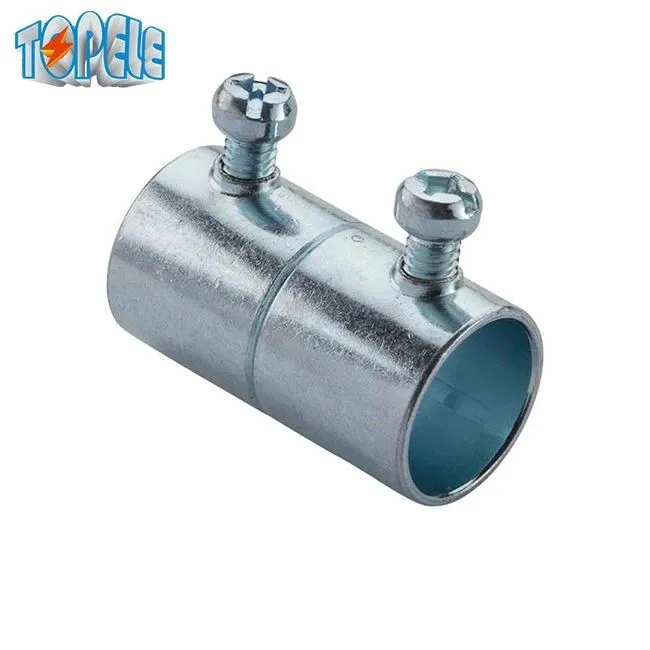

These steel EMT couplings are used in dry location to connect the ends of two unthreaded EMT conduits together. EMT steel set-screw couplings provide concrete tight connections when taped.
Name: Screw Type Steel EMT Coupling for cunduit connector
Material:Steel & Zinc die cast & Pre-Galvanized strip & Stainless steel
Surface treatment:Zinc plated
Size:1/2'' to 4''
These threaded coupling are used to join two ends of threaded rigids conduits or IMC conduits together.
They can also be used with chase nipples and connectors to bond threaded conduits to electrical junction boxes or enclosures.
Steel EMT Set Screw Coupling are used in dry locations to connect the ends of two EMT Thinwall conduits together to extend the raceway.
Our steel set screw coupling provide concrete tight connections when taped and properly secured with the included set screws,and are rated for electrical applications above 600 volts.
Their heavy guage steel construction maintains mechanical protection and solid grounding of one condit to another.
They are also zinc electroplated for excellent corrosion protection in damp locations.
| CAT# | SIZE |
| SSCP-50S | 1/2'' |
| SSCP-75S | 3/4'' |
| SSCP-100S | 1'' |
| SSCP-125S | 1-1/4'' |
| SSCP-150S | 1-1/2'' |
| SSCP-200S | 2'' |
| SSCP-250S | 2-1/2'' |
| SSCP-300S | 3'' |
| SSCP-350S | 3-1/2'' |
| SSCP-400S | 4'' |
